By Dr. Michael Solomonov
The fracture of endodontic instruments during root canal treatment is a complication every endodontist must have to deal with. The reported frequency rate for fractured instruments varies from 0.7% to 6% of cases.1 Stainless steel instrument fracture can be prevented mostly by discarding instruments that show signs of metal fatigue2 however, NiTi instrument separation can happen without any sign of fatigue.3-5 The single use of rotary NiTi instruments reduces the chance of breakage to 0.9% but does not prevent the chance of fracture entirely.6-7 Common reasons for fracture of rotary NiTi files are flexural and/or torsional fatigue.4,6 Unfortunately, it is theoretically impossible to create nonbreaking instruments because of the fact that more flexible instruments, that are more resistant to cyclic fatigue, have been assumed to be less resistant to torsional load and vice versa.8
The common approach for dealing with a broken instrument is its removal. The use of an operative microscope to facilitate canal widening to the level of the broken fragment and its removal by ultrasonic tips and/or some type of grasping equipment is accepted worldwide. 9

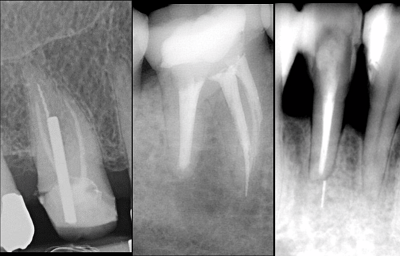

The rate of successful fragment removal is high 10 but can it be defined as endodontic treatment success? Immediate untoward results of dentin removal may be perforation or strip perforation at the danger zone 11. Removal of healthy dentin and especially peri-cervical dentin decreases root strength and can predispose the root to vertical root fracture 11-15 (Fig1).The first principle of medicine is do not hurt your patient, please remember it. The goal of endodontics is to treat or prevent apical periodontitis.16 The most common cause of periapical lesions is intra-radicular infection.17 A broken file by itself does not induce inflammation.18 We often see teeth with fractured instruments that were treated many years ago and have no clinical or radiologic signs of periapical inflammation (Fig 2). Periapical healing takes place if during Endodontic treatment disinfection decreases microbial load beneath the specific threshold.19 Nowadays, total sterilization of canals is still a utopic goal.19 If the broken instrument prevents effective disinfection and the apical lesion does not heal or a new lesion is developed, apical surgery can be used without sacrificing peri-cervical dentin.
The proposed clinical algorithm is based upon the understanding of biological processes that are responsible for periapical lesions and tooth biomechanics. Its goal is the maintenance of a long-term functional tooth.18
If Instrument was broken in a canal with:
Vital Pulp (Not a heavily infected canal). Location of fragment can influence our decisions-
a. Instrument fractured in the apical part of the canal-

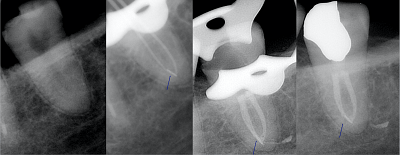

Removal of the fractured file fragment should not be attempted. One should change working length, prepare canal up to the fragment, use some type of NaOCl agitation and obturate the canal in the same visit (Figures 3).
b. Instrument fractured in the middle part of the canal-

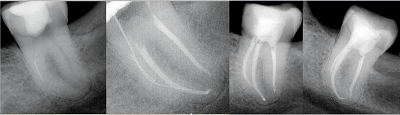

One should try to bypass the broken instrument (Figures 4). If bypass is impossible, my recommendation is to obturate the canal up to the instrument; Follow-up is obligatory, and in case of post-treatment endodontic disease, apical surgery should be considered.
c. Instrument fractured in coronal part of canal-
Removal of a fractured instrument should be attempted with minimal dentin removal, different types of grasping equipment can be used
Non Vital Pulp (An Infected Case)
The stage of shaping and cleaning at the moment of file breakage influences our decisions-
a. Instrument fractured after major cleaning and shaping- canal is prepared to at least size #30. Recommendations are the same as in vital pulp cases:
- Apical third of the canal: removal of the fractured file fragment should not be routinely attempted. Obturation up to the fragment is recommended.
- Middle part of the canal: one should try to bypass the broken instrument. If bypass is impossible, obturate canal up to instrument and follow up , apical surgery should be considered.
- Coronal part of the canal: removal of fractured instrument should be attempted with minimal dentin removal.
b. Separation of instrument before significant instrumentation and irrigation have been performed
- Bypass is highly recommended. Canal cross-section influences this procedure: Long oval and flattened canals and isthmuses enables this procedure, while round canal can impede it. If bypass was successful completion of shaping of the canal by hand files up to size #30 is recommended. Removal of the fragment is not necessary.
- If bypass was unsuccessful, inter-appointment medication with Ca(OH)2 for two – four weeks combined with NaOCl agitation is recommended for disinfection. After final obturation, follow-up is obligatory (Figures 5), and in case of post-treatment endodontic disease, apical surgery should be considered (Figures 6).
Successful removal of fractured instruments may risk the long-term outcome of the tooth by sacrificing sound peri-cervical dentin, which may lead to perforations and predispose the tooth to vertical root fracture. The clinician should consider the micro-biological and biomechanical aspects during clinical decision making.
